Description:

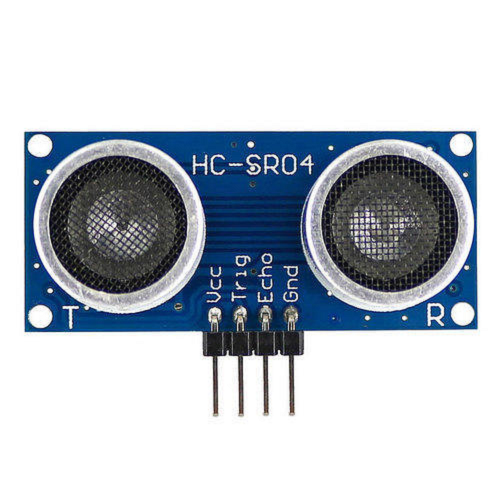

This ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with microcontroller to integrate with motion circuits to make robotic projects and other distance, position & motion sensitive products.

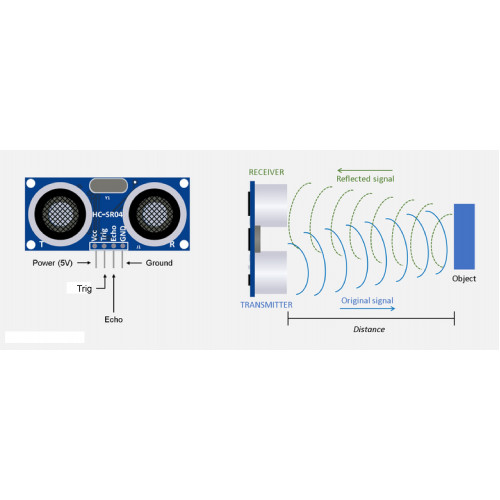

The module sends eight 40Khz square wave pulses and automatically detects whether it receives the returning signal. If there is a signal returning,  a high level pulse is sent on the echo pin. The length of this pulse is the time it took the signal from first triggering to the return echo.

Features:

• Sensor Type: Ultrasonic

• Output: Digital Sensor

• Voltage: 5VDC

• Detection distance: 2cm-400cm (0.02M - 4.0M)

• Static current: < 2mA

• Level output: high-5V

• High precision: up to 0.3cm
