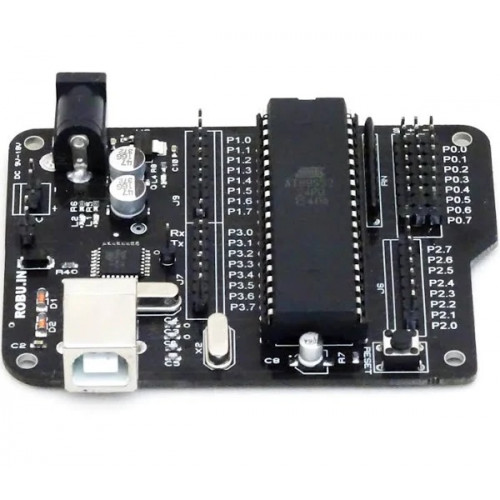

This 8051 Development Board is aimed at providing the microcontroller newbies with a quick way into the development of embedded projects. The Aryabhatta 8051 Development Board AT89S52 with Onboard USB Programmer is very easy to use but also at the same time offering high functionality and yet it is available at a price everyone can afford!!!

With SmartElex’s Aryabhatta 8051 Development Board AT89S52 – on-board USB Programmer you can develop and prototype 40 pins 89S52 and 89s51 microcontrollers. The onboard programmer allows easy connection with PC using USB type B cable for Programming. The Operating Voltage is 9V to 15V DC.

Our team is very excited to give you this 8051 microcontroller board at an ever-surprising affordable price.

If you are learning microcontrollers or want to quickly develop an embedded project based on standard 8051 core, then this board will help you quick start with the application by giving you access to everything required to run the AT89S52 microcontroller. With this board, you can develop and prototype with any of 8051 40 pin microcontrollers.

Pinout Diagram

Features :

1. Quartz crystal 11.0592 MHz
2. Onboard programmer.
3. Reset button.
4. Power plug-in jack.
5. GND bus.
6. VCC bus.
7. Onboard 5V voltage regulator.
8. Power Indicating LED.
9. Onboard Regulated Power Supply 5V, 12V, GND.
10. High-quality PCB FR4.
11. External pull-up resistors for Port 0.
12. Port extensions for all ports.1.
13. Supported Microcontroller: AT89SXXXX series.

Package Includes :

1 x Aryabhatta 8051 Microcontroller Development Board AT89S52 with Onboard USB Programmer
