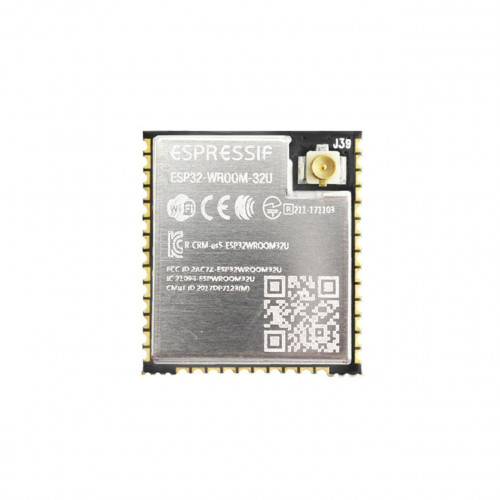

Presenting the ESP32-WROOM-32U-N4 Wi-Fi BLE Module with a 4MB IPEX Antenna Connector - a versatile and robust solution for your wireless connectivity needs. This powerful module is engineered to excel in a diverse range of applications, from energy-efficient sensor networks to high-performance tasks like voice encoding, music streaming, and MP3 decoding. With the ESP32-WROOM-32U, you can accomplish more with ease.

At the heart of this module lies the ESP32-D0WD chip, a member of the ESP32 series renowned for its scalability and adaptability. Equipped with two individually controllable CPU cores and an adjustable clock frequency from 80 MHz to 240 MHz, this chip empowers you to optimize performance according to your requirements. Moreover, the chip boasts a low-power coprocessor, enabling energy savings during tasks that demand less computational power, such as peripheral monitoring.

The ESP32-WROOM-32U integrates an array of peripherals, including capacitive touch sensors, an SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C. This comprehensive suite of features grants you the flexibility and versatility to craft seamless and innovative solutions. With a compact form factor measuring just 18x19.2x3.2 mm, this module effortlessly fits into your designs without sacrificing performance or functionality.

Features:

1. ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors.
2. 448 KBytes ROM for booting and core functions.
3. 520 KBytes on-chip SRAM
4. 8 KBytes SRAM in RTC SLOW
5. 8 KBytes SRAM in RTC FAST
6. 1 Kbit of EFUSE, 256 bits MAC
7. IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
8. Interfaces: SD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor

Specification:

Xtensa 32-bit LX6 microprocessors

1 Kbit of EFUSE, 256 bits MAC

WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)

Bluetooth v4.2 BR/EDR and BLE specification

Wi-Fi mode Station/softAP/SoftAP+station/P2P

Operating voltate: 2.2-3.6V

Package Includes:

1 x Espressif ESP32-WROOM-32U 16M 128Mbit Flash WiFi Bluetooth Module
